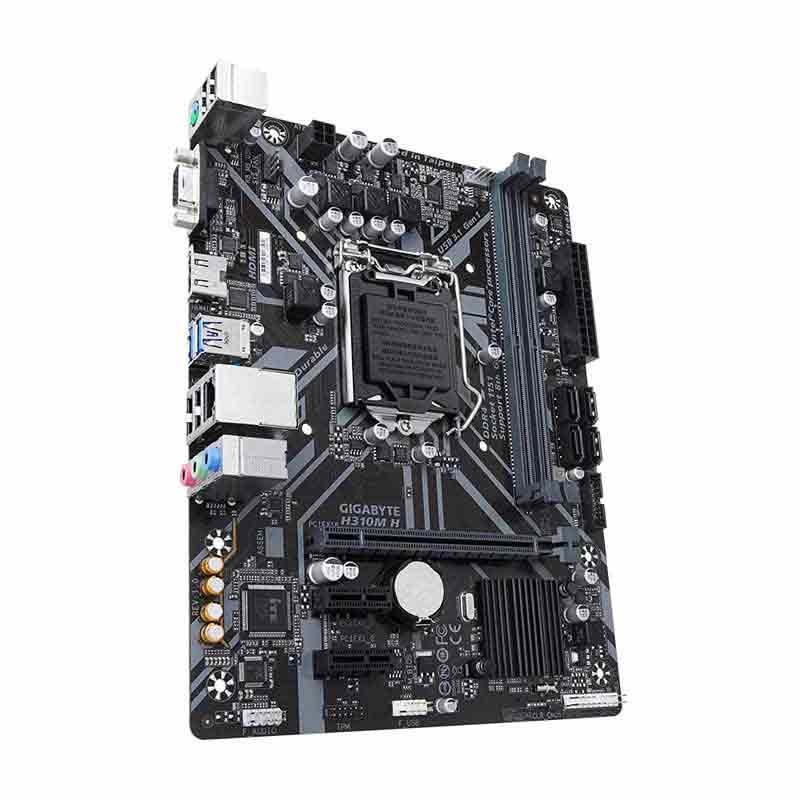

H310 Ultra Durable motherboard

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, Anti-Sulfur Resistor, Intel CNVi WIFI upgradable slot, Smart Fan 5, DualBIOS™, CEC 2019 ready

Category : ComputerPeripherals.
Availability : Available.

Product are available at our following branches:

For Pre-Booking Contact us
Head Office
  • Address: 1st Floor, R.S. Building, Opposite to Bank of Baroda, Taxi Stand, Kohima -797001, Nagaland
  • Sales : +91 9402988686
  • Service : +91 6009414251
    7085050427
Branch Office Kohima
  • Address: P.R. Hill, Red Cross Complex, Kohima -797001, Nagaland
  • Sales & Service : +91 6009775519
Branch Office Kohima
  • Address: Opp. Niathu Garden, New Secretariat Road, Kohima -797001, Nagaland
  • Sales & Service : +91 8974054263
  • Brand : GIGABYTE

    • CPU : Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
    • Chipset : Intel® H310 Express Chipset
    • Memory : 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    • Onboard Graphics : Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB
    • Audio : Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
    • LAN : Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Expansion slot : x PCI Express x16 slot, running at x16 (PCIEX16) (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) 3 x PCI slots 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
    • USB : 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) * The CNVi connector shares bandwidth with the F_USB1 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB1 header becomes unavailable.
    Available: Yes
    Colors Black
    Brand GIGABYTE

    Related Products

    PRIME H310-PLUS

    PRIME H310-PLUS
    ZEB-H81 Motherboard

    ZEB-H81 Motherboard
    ZEB-H61 Motherboard

    ZEB-H61 Motherboard

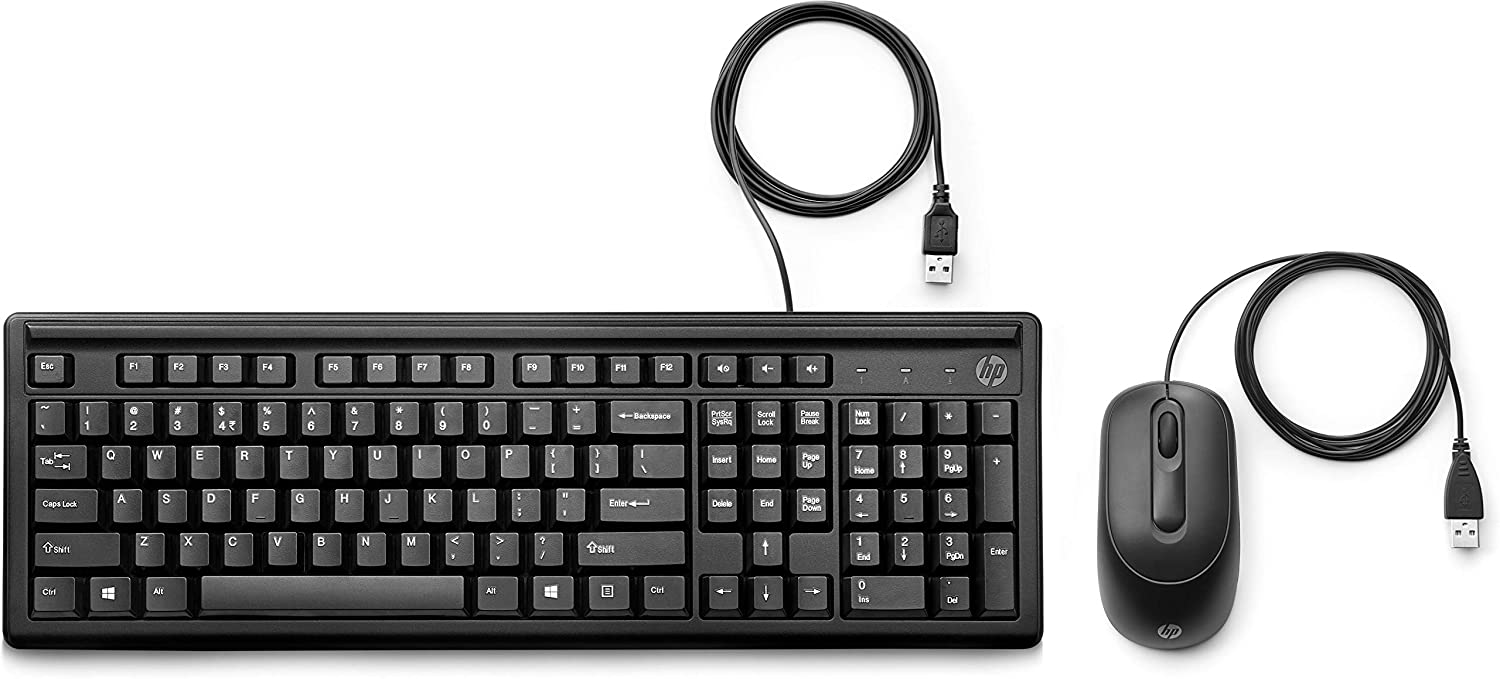

    Hp 160 Keyboard Mouse
