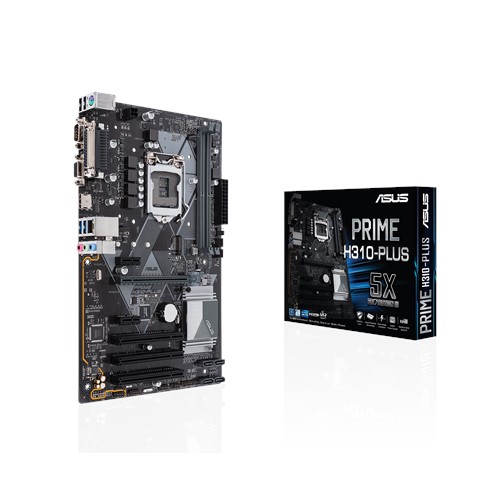

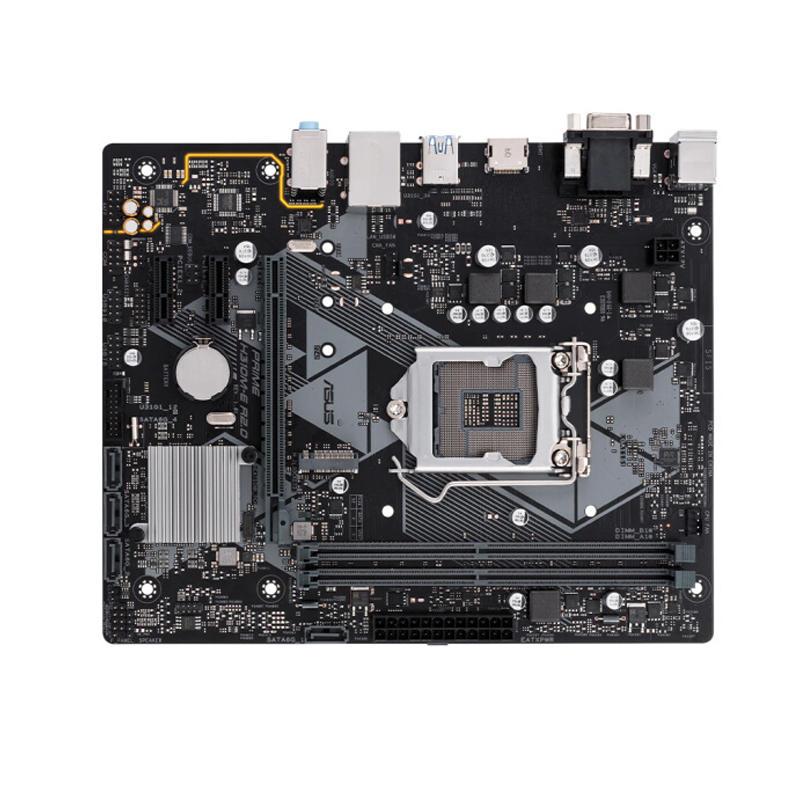

PRIME H310-PLUS

Intel LGA-1151 ATX motherboard with Aura Sync RGB header, DDR4 2666MHz, M.2 support, HDMI, SATA 6Gbps and USB 3.1 Gen 1

Category : ComputerPeripherals.

Availability : Available.

Product are available at our following branches:

For Pre-Booking Contact us

Address: 1st Floor, R.S. Building, Opposite to Bank of Baroda, Taxi Stand, Kohima -797001, Nagaland
Sales : +91 9402988686
Service : +91 6009414251
7085050427

Brand : ASUS

CPU : Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset : Intel® H310
Memory : 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic : Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively)
Expansions Slots : 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 3 x PCI
LAN : Realtek® RTL8111H, 1 x Gigabit LAN
Audio : Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking

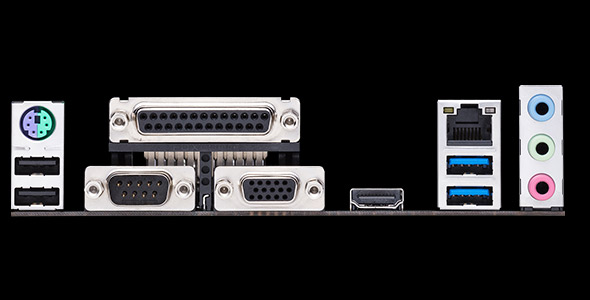

USB Ports : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Operation Sytem : Windows® 10 64-bit
